At Electro Oxin Co., we are proud to introduce the Pipeline Current Mapper (PCM), a cutting-edge technology designed to detect and map electrical currents in pipelines. The PCM is a non-intrusive, non-destructive testing device that provides accurate and reliable data on pipeline currents, enabling operators to optimize pipeline performance, reduce energy losses, and extend the lifespan of their assets.
Current Mapping:
The PCM creates a detailed map of pipeline currents, enabling operators to identify areas of high current density, detect anomalies, and optimize pipeline performance.
Current Profiling:
The PCM provides detailed profiles of pipeline currents, including current magnitude, direction, and phase angle.
Data Logging:
The PCM logs pipeline current data for extended periods, enabling operators to track changes in pipeline conditions over time.
Integration with SCADA Systems:
The PCM can be integrated with SCADA systems, enabling operators to access pipeline current data remotely and respond quickly to changes in pipeline conditions.
Alarm and Notification:
The PCM includes alarm and notification features, alerting operators to changes in pipeline conditions, such as unusual current patterns or anomalies.

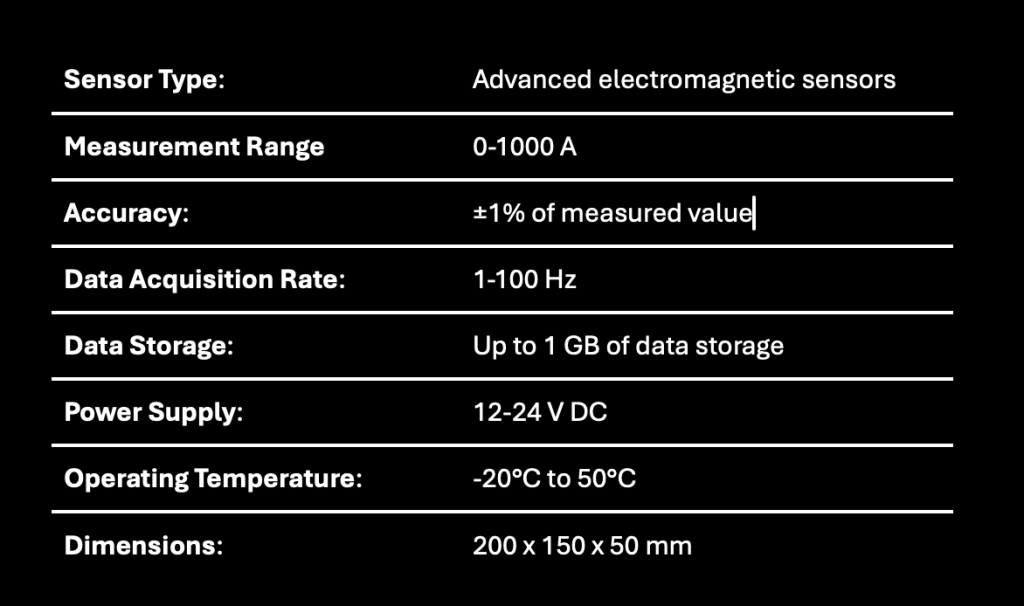

- Sensor Type: Advanced electromagnetic sensor
Measurement Range: 0-1000 A
Accuracy: ±1% of measured value
Data Acquisition Rate: 1-100 Hz
Data Storage: Up to 1 GB of data storage
Power Supply: 12-24 V DC
Operating Temperature: -20°C to 50°C
Dimensions: 200 x 150 x 50 mm
Applications
Water Pipelines
The PCM can be used to monitor pipeline currents in water pipelines, helping operators detect leaks, reduce energy losses, and extend pipeline lifespan.
Oil and Gas Pipelines
The PCM is ideal for monitoring pipeline currents in oil and gas pipelines, enabling operators to optimize pipeline performance and reduce energy losses.
Industrial Pipelines
The PCM is suitable for monitoring pipeline currents in industrial pipelines, enabling operators to optimize pipeline performance, reduce energy losses, and enhance safety.
Features
Extended Pipeline Lifespan
The PCM’s non-intrusive and non-destructive design eliminates the risk of damage or disruption to operations, enhancing safety and reducing the risk of accidents.
Cost-Effective:
By using the established pipeline network, customers can avoid the high costs associated with building new communication infrastructure.
Real-Time Data Transmission:
The integration of specialized modem technology enables real– time data transfer from flowmeters and conductivity sensors directly to the monitoring center.
Simplified Deployment Process Quick Setup:
The installation of PLT is straightforward, enabling rapid deployment and minimizing downtime during the transition to the new system.
Timely Decision Making:
This immediacy allows operators to make informed decisions based on the latest data, enhancing operational efficiency.
